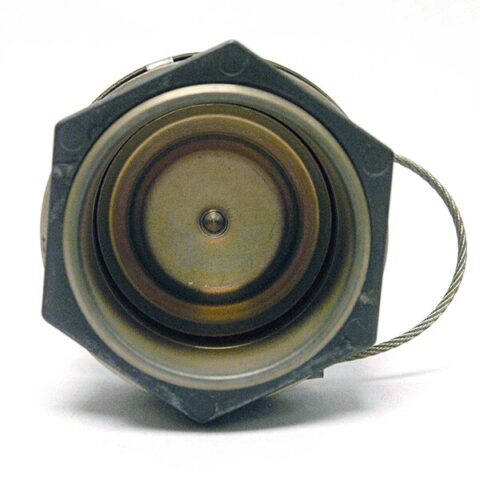

Arcadia Desiccant TA475-PORT Access Port
Compact 2″ Port for Versatile Applications
The TA475-PORT is Arcadia Desiccant’s smallest 2-inch access port, offering a simple and reliable solution for a variety of applications—from basic feed-throughs to small inspection or maintenance access points.
This port utilizes the housing of the TA475 and is also compatible with the TA476-style cover. When equipped with the TA476 cover, it can accommodate Arcadia Desiccant’s TA300 series breather valves or TA356 series humidity indicators, allowing for enhanced functionality.
The TA475-PORT installs through a 2.015″ diameter hole using the supplied mounting nut and washer. Custom options are available, including alternative gasket materials, aluminum finishes, and special features tailored to specific application needs.
Tamper-Resistant: Pre-drilled holes in the cover and flange support the use of safety wire or inspector’s seals for added security.
Materials and Finishes:
-
Body: Aluminum alloys, conversion coated to MIL-DTL-5541 standard
-
Cover: Stainless steel, passivated
-
Seals: Buna-N o-ring with a silicone rubber external gasket
Specifications:
-
Weight: 0.23 lbs (103 grams)
-
Torque for Spanner Nut: 80 in-lbs (9 N·m)
-
Required Mounting Hole Diameter: 2.015 in (+0.015 / -0.005 in)
For custom configurations, material variations, or information on applicable NEMA and IP ratings, please contact Arcadia Desiccant’s Engineering Department.
