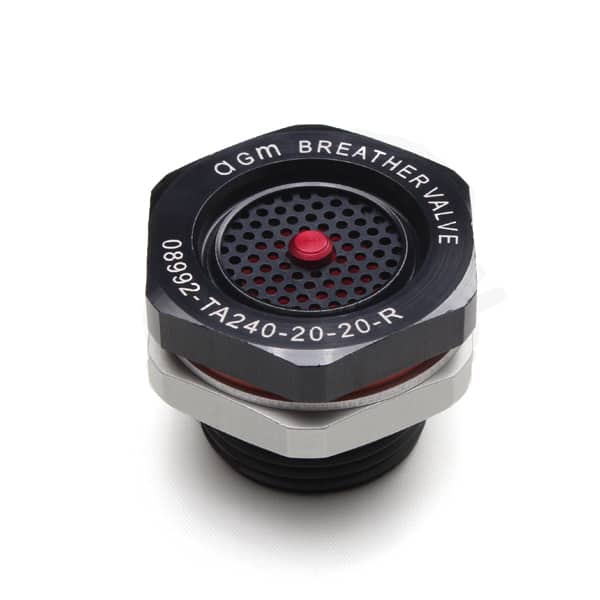

TA240-R Breather Valve
Hybrid Design for Medium-to-Large Transit Cases
Conforms to MIL-DTL-27166 & SAE AS27166
The TA240-R breather valve is a hybrid solution combining features of Arcadia Desiccant’s TA333-R and TA238 breather valves. It merges the thread size and hexagonal profile of the TA333-R with the screened cover and cost-effectiveness of the TA238-R. Designed for use in transit cases and similar enclosures up to 33 cubic feet in volume, it delivers a flow rate between 1.5 and 4.0 SCFM at 1.5 psid above the reseal pressure. Reseal settings are available from 0.5 psid to 5.0 psid.
This valve is lightweight, durable, tamper-resistant, and requires no field maintenance. It is constructed from corrosion-resistant materials and uses a silicone rubber valve seal. A recessed manual pressure release button is standard on all TA240-R units, allowing safe equalisation of pressure or vacuum to facilitate opening the enclosure.
Each valve is supplied with a gasket, washer, and hex nut. RFI/EMI shielding and mounting flanges are available. Custom desiccant cartridge integration is also possible for enhanced moisture control.
Important Note:
The TA240-R is not designed to withstand high-pressure water spray or hose-down conditions. For such requirements, please use the TA330, TA333, or TA770 breather valves.
Materials and Finish:
-
Housing, Hex Nut & Washer: Aluminium alloy
-
Gasket: Silicone rubber (compliant with ZZ-R-765)
-
Finish: Housing – Black anodised; Washer & Nut – Clear anodised
Installation Details:
-
Mounting Hardware: Supplied with gasket, washer, and hex nut
-
Mounting Hole Diameter: 1.05 ± 0.015 in. (27 ± 0.38 mm)
-
Maximum Wall Thickness: 0.61 in. (15 mm)*
-
Installation Torque: 30–40 in-lbs (3.4–4.5 N·m)
-
Weight: 0.02 lbs (32 grams)
*For wall thicknesses under 0.04 in. (1 mm), an additional washer may be required (Arcadia Desiccant P/N 300013-16, ordered separately).
Threaded Boss Installation:
-
Thread Size: 3/4-14 NPSM
-
Thread Relief Requirement: 1.05 ± 0.015 in. (27 ± 0.38 mm) diameter with a minimum counterbore depth of 0.08 in. (2 mm)
For guidance on NEMA and IP ratings, please contact Arcadia Desiccant‘s engineering team.
