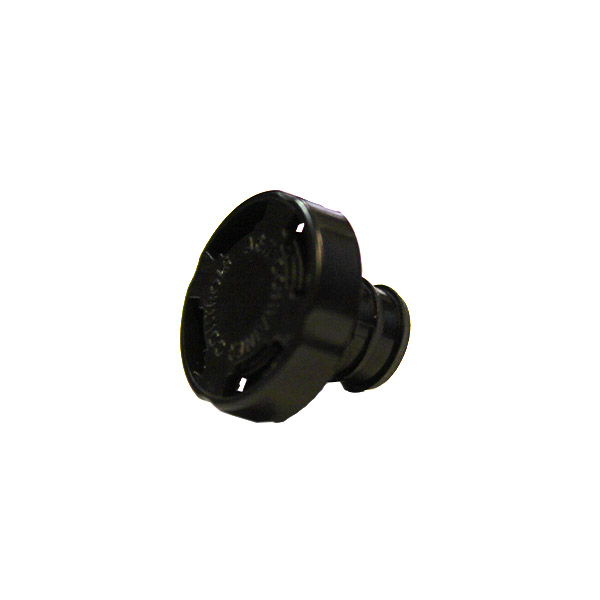

TA210 Breather Valve – Thumbtack™ Style
Low-Cost, Two-Way Pressure Relief
The TA210, commonly referred to as a Thumbtack™ valve, is a cost-effective, press-in style breather valve made from durable plastic. It provides two-way pressure relief with standard cracking pressures ranging from 0 psid to 1.0 psid.
This valve is tamper-resistant and requires no field servicing or maintenance.
Materials and Finish:
Manufactured using corrosion-resistant materials throughout. The housing and cap are moulded from ABS plastic, while the internal elastomeric insert is made from silicone rubber.
Mounting Requirements:
-
Mounting Hole Diameter: Presses into a 0.323″ (8.20 mm) diameter hole (Drill Size P)
-
Minimum Wall Thickness: 0.10 in. (2.54 mm)
-
Maximum Wall Thickness: Unlimited
For information regarding NEMA and IP enclosure ratings, please contact Arcadia Desiccant‘s engineering team.
Related Product:
Arcadia Desiccant also offers the TA211 Thumbtack Valve, a one-way pressure relief version of the TA210.
