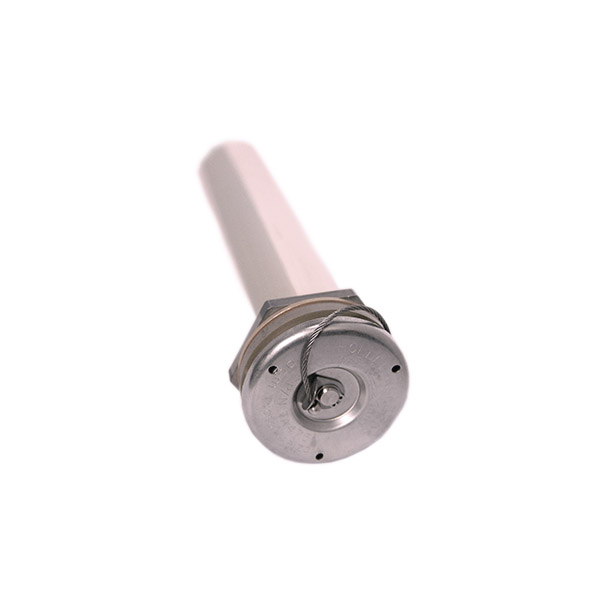

Arcadia Desiccant AD701 Records Holder
For Safe Storage of Inspection Records and Instructions
Suitable for storing a few rolled documents or instruction sheets up to legal size (8.5″ x 14″), the AD701 Records Holder from Arcadia Desiccant offers a secure, waterproof, and pressure-tight compartment—ideal for shipping and storage containers.
The lightweight unit is pressure sealed up to 5 psig and mounts externally to the container using a retained gasket. A spring-loaded cover with an integrated o-ring ensures an airtight seal for the internal compartment.
Easy to Use: Simply roll the documents and place them inside the tube. To close, press the cover and twist approximately 30°.
Quick Installation: Designed for installation through a 2.02″ (51 mm) diameter hole in the container wall. The holder comes complete with a gasket, washer, and mounting nut.
Tamper-Resistant: Pre-drilled holes in the cover and flange allow for the use of safety wire or an inspector’s seal.
Mounting Surface Note: For optimal sealing, the holder should be mounted on a smooth, flat surface. It may not form a tight seal on domed, curved, or rough surfaces.
Materials and Finish:
-
Body: Aluminum alloys, conversion coated to MIL-DTL-5541 standard
-
Cover: Stainless steel, passivated
-
Seals: Buna-N o-ring and gasket
Specifications:
-
Weight: 0.31 lbs (140 grams)
-
Torque for Hex Nut: 80 in-lbs (9 N·m)
